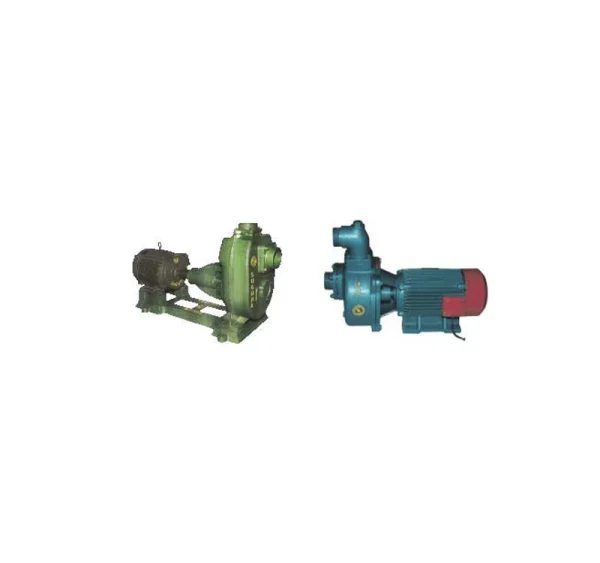

Self Priming Sewage Pumps
Self Priming Sewage Pumps
PERFORMANCE DATA
APPROXIMATE PERFORMANCE DATA AT 2880 RPM / 200 V, 50 HZ
| PUMP TYPE | HP | SPEED RPM | SIZE mm | TOTAL HEAD IN METERS | Solid Handling (mm) | ||||||||
| 6 | 8 | 10 | 12 | 14 | 16 | 18 | 21 | 24 | |||||
| MOTOR COUPLED TYPE | DISCHARGE IN LPM | ||||||||||||
| SPH 02 | 3 | 2900 | 50 X 50 | 420 | 410 | 405 | 400 | 380 | 350 | 330 | 230 | 80 | 10.5 |
| SPS 03 | 5 | 1450 | 75 X 75 | 1100 | 1080 | 1015 | 906 | 660 | 440 | 360 | 15.5 | ||
| ENGINE COUPLED TYPE | |||||||||||||
| SPSEC 03 | 6 | 1440 | 75 X 75 | 1200 | 1150 | 1080 | 980 | 840 | 630 | 440 | 190 | 15.5 | |
| MONOBLOC TYPE | |||||||||||||
| SDW 102 | 1 | 2900 | 50 X 50 | 360 | 320 | 275 | 220 | 152 | 8 | ||||
| SDW 152 | 1.5 | 2900 | 50 X 50 | 380 | 340 | 290 | 235 | 170 | 130 | 92 | 8 | ||
