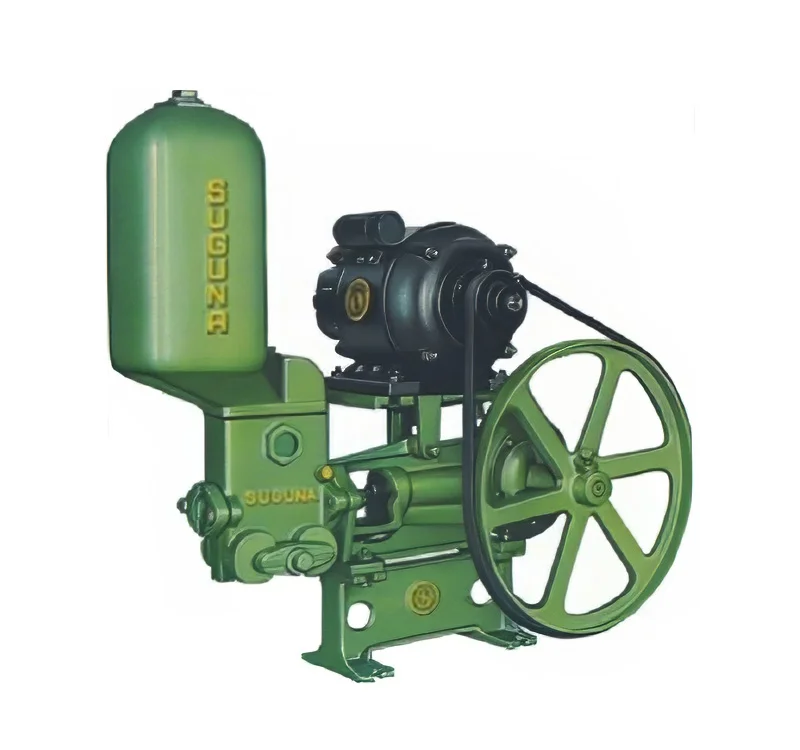

Reciprocating Piston Pump
Reciprocating Piston Pump
FEATURES
- Plunger : The easy movement of plunger inside the brass sleeves, ensures positive suction and delivery.
- Valves : The brass valves provide smooth and direct passage for water from suction to discharge points. The spring fitted rubber valves help to reduce slippage and also ensures noiseless and smooth operation.
- Piston shaft : The stainless steel shaft connects the plunger assembly with the crank shaft of the pump and provides smooth running with minimum noise.
PERFORMANCE DATA
| Specifications | Type I | Type II | Type III |
| Suction | 25 mm | 32 mm | 38 mm |
| Delivery | 1 9 mm | 25 mm | 32 mm |
| Output | 1730 LPH | 2165 LPH | 4300 LPH |
| Suction Lift | 7 mtrs | 7 mtrs | 7 mtrs |
| Total Head | 36 mtrs | 60 mtrs | 50 mtrs |
| Motor Required | 0.375 KW | 0.750 KW | 1.125 KW |
| Pump Bore | 40 mm | 55 mm | 55 mm |
| Pump stroke | 40 mm | 40 mm | 45 mm |
| Pump Speed | 250 RPM | 250 RPM | 250 RPM |
| ‘V’ Belt | A-49 | A-52 | A-43 |
